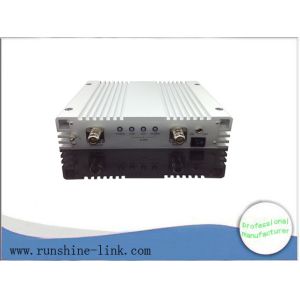

1800MHz Cell Phone Signal Amplifier , GSM DCS and WCDMA 20dbm

Name: 1800MHz Cell Phone Signal Amplifier GSM DCS and WCDMA 20dbm
Brand: Runshine
Price: 1 USD

Place of Origin : China

Brand Name : Runshine

Certification : CE ROSH FCC

Model Number : RSFD-GDW-20

MOQ : 10

Delivery Time : 1 Week after confirmed payment

Payment Terms : TT/ Western union / Paypal / Money gram

Supply Ability : 10000 set / month

Model No : RSFD-GDW-20

Frequency Range : Uplink:890 ~ 915/1710~1785/1920~1980 MHz Downlink:935 ~ 960 /1805 ~ 1880/2110~2170 MHz

Output Power : Uplink:15 ±2dBm Downlink:20 ±2dBm

Gain : Uplink:5 dB Downlink:70 dB

VSWR : ≤2

Impedance : 50 ohm

Price : Get Latest Price

Contact Now

1800MHz Cell Phone Signal Amplifier , GSM DCS and WCDMA 20dbm

Function:

●Making your mobile phone signal stronger.
●Making you keep in touch with others smoothly in everywhere
●Cell phone signal amplifier repeater booster designed to solve
the mobile phone weak signal.

Application:

● Designed to solve the mobile phone weak signal.
● Underground parking area, Underground market.
● Department Store, Home, Office, Commercial Center.
● Stadium, School, Hospital, Hotel, Subway station etc.

Feature:

● ALC ensure output level stable and adjustable continuously.
● Low power consumption and avoid to interference to BTS.
● LED indicate and judge to signal level of uplink and downlink.
● AGC and MAC function.
● Customized band selective.
● With the amplified linear power, the intermodulation and and
spuriousness are suppressed effectively.
● Compact design, to easy or and convenient installation.

Model No		RSFD-GDW-20
Parameter data		Uplink	Downlink
Frequency Range		890 ~ 915/1710~1785/1920~1980 MHz	935 ~ 960 /1805 ~ 1880/2110~2170 MHz
Output Power		15 ±2dBm	20 ±2dBm
Gain		65 dB	70 dB
Bandwidth		Wide Band
Automatic Gain Control		＞20dB
Ripple in Band		≤5dB
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure @ max. gain		≤ 6 dB
VSWR		≤2
MTBF		＞50000 hours
Power Supply		AC:90~265V, 50/ 60Hz；DC:10V 2A
Power Comsumption		< 20W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female
Cooling		Heatsink Convection cooling
Dimensions (D x W xH )		25030053(mm)
Weight		3.2Kg
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10℃ ~ 55℃
