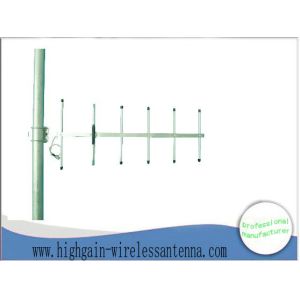

450MHZ CDMA Directional Yagi Antenna / Wireless 12dBi Antenna 6 Element

Name: 450MHZ CDMA Directional Yagi Antenna Wireless 12dBi Antenna 6 Element
Brand: Runshine
Price: 1 USD

Best 450MHZ CDMA Directional Yagi Antenna / Wireless 12dBi Antenna 6 Element wholesale

Model Number : RSY-433-12

Place of Origin : Shenzhen China

Brand Name : Runshine

Certification : ROSH

MOQ : 100pcs

Delivery Time : 1 week after received the payment

Payment Terms : TT in advance

Product Name : Directional Yagi Antenna

Feature : High Gain,Aluminum Alloy frame

Application : 450MHZ CDMA System

Frequency rang-MHz : 450-470

Gain -dBi : 12

Polarization : Horizontal or Vertical

Contact Now

450MHZ CDMA Directional Yagi Antenna / Wireless 12dBi Antenna 6 Element

Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V

Application:
● 450MHZ CDMA System
● 450MHZ Wireless Access system
● Village to Village project

Specification

Model NO	RSY-450-470-12
Electric Spec
Frequency rang-MHz	450-470
Bandwidth -MHz	20
Gain -dBi	12
element	6
beam width -°	H:42 V:38
F/B Ratio-dB	≥16
VSWR	≤1.5
Input Impedance-Ω	50
Polarization	Horizontal or Vertical
Max power -W	100
Lightning protection	DC ground
Connector model	N female or others
Mechanical Specification
Size -mm	87034080
Cable length-m	0.3
Antenna weight-kg	0.52
Working Temperature -°c	-40～60
Rated Wind Velocity-m/s	60
Clamp	U
Pole diameter -mm	Φ40～Φ50

Antenna details :

Application Example :

Install demonstration
